Shenzhen Tenchy Silicone&Rubber Co.,Ltd sales@tenchy.cn 86-755-29181281
تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Tenchy
إصدار الشهادات: FDA&LFGB
Model Number: ZCST-005
شروط الدفع والشحن
الحد الأدنى لكمية: 200 متر
الأسعار: Negotiated
Packaging Details: Packed in standard master, Cartons size: 35*40*50cm
وقت التسليم: 5-8 أيام العمل
شروط الدفع: T/T ، Western Union
Supply Ability: 10,000 meters per day/ 32,000 feet per day
Material: |
Pure silicone |
صلابة: |
40-80 شور أ |
Color: |
Transparent or semi clear |
مقاومة درجة الحرارة: |
-40 ℃ إلى 200 ℃ |
Feature: |
Non-toxic, harmless and odorless |
Certifications: |
FDA,LFGB,ROHS certifications |
Material: |
Pure silicone |
صلابة: |
40-80 شور أ |
Color: |
Transparent or semi clear |
مقاومة درجة الحرارة: |
-40 ℃ إلى 200 ℃ |
Feature: |
Non-toxic, harmless and odorless |
Certifications: |
FDA,LFGB,ROHS certifications |

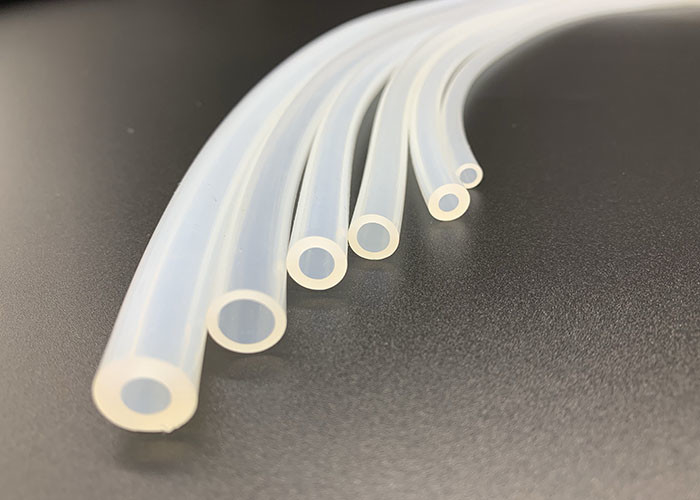

| Item Name | Silicone tubing |
| Material | 100% silicone |
| Production Process | Extrusion |
| Grade | Medical, food grade |
| Certification | FDA, LFGB |
| Feature | Heat resistant, solid, flexible, aging resistant, odourless |
| Application | Beer, brewing, milk, equipment, coffee machine, filling machine, drinking equipment |
| Color and Size | We can custom any color and any size for clients |
| Packing | Plastic bag&carton box or according to your requirements. |
| OD range | 0.5-100mm |
| Tolerance Range | ±0.1mm (For big size, the tolerance range is 0.2-0.5mm) |
| Hardness | 40-80A |
| Delivery time | Within 5-8 days |
| Certifications | FDA,RoHS,LFGB |
1. High temperature resistant , corona resistant,flexible
2. RoHS Compliant
3. Continuous operating temperature: -60°C~260°C
4. Standard color: red , blue , white , ashy , green , transparency and others
5. Certification: FDA, LFGB approved
Application:
Common silicone rubber tubes: medical silicone tube, food grade silicone tube, industrial silicone rubber tube, silicone shaped silicone tube, silicone hose fittings.
Medical silicone tube is mainly used for medical equipment accessories, medical catheter, the use of antimicrobial design, to ensure the safety of using.
Food grade silicone tube for drinking machine, coffee machine and household appliances water diversion pipeline, line protection.
Industrial silicone rubber tubes are used for special chemical, electric and other special environmental protection carrier flow, using special properties of silicone.
| Food Grade Silicone Tubing | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| ST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-153 | 1.5 | 3.0 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-25 | 2.0 | 5.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-26 | 2.0 | 6.0 | 2.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-34 | 3.0 | 4.0 | 0.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-36 | 3.0 | 6.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-46 | 4.0 | 6.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-48 | 4.0 | 8.0 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-57 | 5.0 | 7.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-59 | 5.0 | 9.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-510 | 5.0 | 10.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-68 | 6.0 | 8.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-79 | 7.0 | 9.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-711 | 7.0 | 11.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-712 | 7.0 | 12.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-713 | 7.0 | 13.0 | 3.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-810 | 8.0 | 10.0 | 1.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-811 | 8.0 | 11.0 | 1.5 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-814 | 8.0 | 14.0 | 3.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-912 | 9.0 | 12.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-913 | 9.0 | 13.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1012 | 10.0 | 12.0 | 1.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1013 | 10.0 | 13.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1014 | 10.0 | 14.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1016 | 10.0 | 16.0 | 3.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1214 | 12.0 | 14.0 | 1.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1216 | 12.0 | 16.0 | 2.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1218 | 12.0 | 18.0 | 3.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1317 | 13.0 | 17.0 | 2.0 | ±0.2 | ±0.15 | 30, 50 |
| ST-1318 | 13.0 | 18.0 | 2.5 | ±0.2 | ±0.15 | 30, 50 |
| ST-1420 | 14.0 | 20.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1620 | 16.0 | 20.0 | 2.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1621 | 16.0 | 21.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1622 | 16.0 | 22.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1623 | 16.0 | 23.0 | 3.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1722 | 17.0 | 22.0 | 2.5 | ±0.3 | ±0.15 | 30, 50 |
| ST-1824 | 18.0 | 24.0 | 3.0 | ±0.3 | ±0.15 | 30, 50 |
| ST-1925 | 19.0 | 25.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2024 | 20.0 | 24.0 | 2.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2025 | 20.0 | 25.0 | 2.5 | ±0.4 | ±0.20 | 30, 50 |
| ST-2026 | 20.0 | 26.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2226 | 22.0 | 26.0 | 2.0 | ±0.4 | ±0.2 | 30, 50 |
| ST-2530 | 25.0 | 30.0 | 2.5 | ±0.6 | ±0.2 | 30, 50 |
| ST-2531 | 25.0 | 31.0 | 3.0 | ±0.6 | ±0.2 | 30, 50 |
| ST-3038 | 30.0 | 38.0 | 4.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3040 | 30.0 | 40.0 | 5.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3238 | 32.0 | 38.0 | 3.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3240 | 32.0 | 40.0 | 4.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3545 | 35.0 | 45.0 | 5.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3844 | 38.0 | 44.0 | 3.0 | ±0.6 | ±0.4 | 30, 50 |
