تفاصيل المنتج
مكان المنشأ: شنتشن الصين
اسم العلامة التجارية: Tenchy
إصدار الشهادات: FDA, RoHS
Model Number: TC-SB791
شروط الدفع والشحن
الحد الأدنى لكمية: التفاوض
وقت التسليم: 5-8 أيام العمل
شروط الدفع: T/T ، Western Union
Supply Ability: 10,000 meters per week
الشركة المصنعة: |
تينشي سيليكون |
اسم: |
أنابيب ملفوفة بالسيليكون |
Model No: |
TC-SB791 |
ID range: |
2mm - 100mm |
تسامح: |
± 0.1mm |
مقاومة درجة الحرارة: |
-40 درجة مئوية إلى 200 درجة مئوية |
لون: |
شفاف |
طلب: |
نقل السوائل |
Reinforced material: |
Polyster braided |
Material: |
Pure Silicone Rubber, Polyester |
الاتصال الغذائي: |
وافقت إدارة الأغذية والعقاقير |
المكان أو الأصل: |
شنتشن ، الصين |
الشركة المصنعة: |
تينشي سيليكون |
اسم: |
أنابيب ملفوفة بالسيليكون |
Model No: |
TC-SB791 |
ID range: |
2mm - 100mm |
تسامح: |
± 0.1mm |
مقاومة درجة الحرارة: |
-40 درجة مئوية إلى 200 درجة مئوية |
لون: |
شفاف |
طلب: |
نقل السوائل |
Reinforced material: |
Polyster braided |
Material: |
Pure Silicone Rubber, Polyester |
الاتصال الغذائي: |
وافقت إدارة الأغذية والعقاقير |
المكان أو الأصل: |
شنتشن ، الصين |

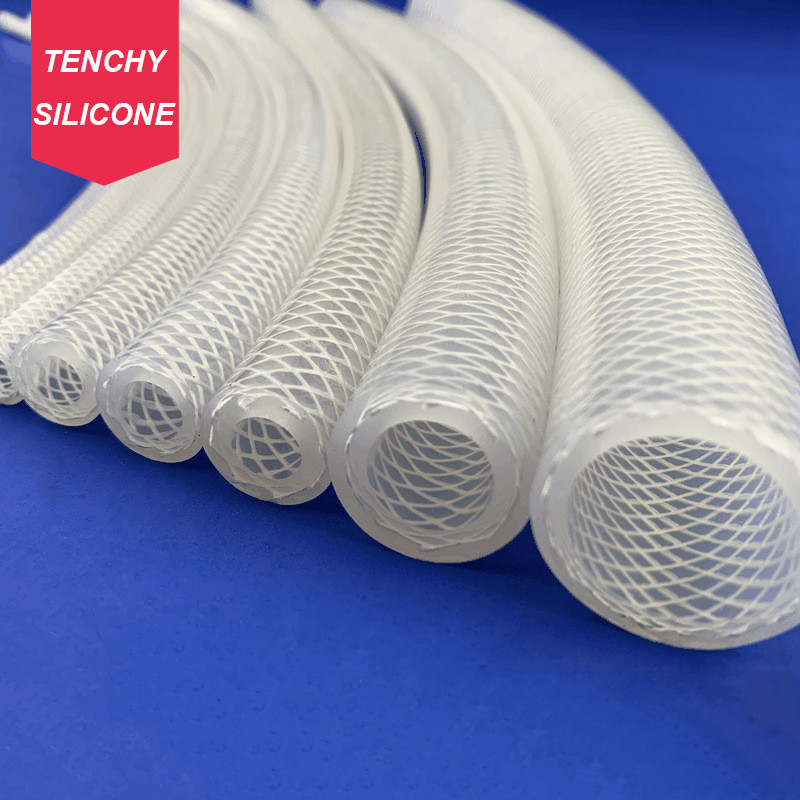

Reinforced Silicone Hose High Pressure Resistant FDA Food Grade
Specifications:
| Item Name | Translucent Reinforced Silicone Hose |
| Grade | Food Grade, no smell |
| Applications | Brewing machine, Coffee machine, Medical devices |
| Temperature Range | -100º F - 400º F (-40°C ~ + 200°C ) |
| OD/ID range | 2mm to 100mm |
| Tolerance of size | +/- 0.1mm |
| Feature | 1. Made from food contact safe silicone materials 2. Odorless, tasteless, and inert 3. Resilient, stretchable, and resistant to compression set 4. Good electrical and weatherability properties 5. Translucent natural color for visual contact with the flow 6. Resists UV, ozone, gases, and moisture 7. Certified to NSF Standard 51 for food equipment materials |
Features:
The unique combination of elastomer and textile processing technology under one roof puts Tenchy in a position to offer
its customers a broad range of textile-reinforced pressure hoses for many different high-pressure or vacuum applications. The multi-stage production process combines an extruded silicone inner hose with a surrounding braid of the various different possible textiles and, on request, a coloured silicone coating or LSR fixing. This sandwich structure guarantees pressure resistances of up to more than 100 bar with multiple reinforcements with an additional intermediate silicone ply. Standard reinforcements consist of polyester monofilament (PES mono), polyester multifilament (PES MF), fibre-glass twine and yarns and aramide fibres.
A specific selection of nominal widths with inner diameters from 3mm (1/8 inch) to 50m (2 inch) is available ex-stock. Together with the four standard reinforcements , stainless steel, copper or other metal wires can also be braided in, for example as heating or control leads.
FAQ
Q1: Why choose Tenchy silicone?
We are committed to the silicone rubber sealing field. Our factory has 11 years of experience and has accumulated rich experience in silicone rubber processing and manufacturing to provide customers with the best silicone rubber sealing solutions and products.
Q2. How we ensure product quality?
100% inspection during production. Our products are certified with FDA, LFGB, RoHs certifications.
Q3: How to Custom-made?
If you have a new product drawing or sample, we can customize according to them. We have Quick feedback on your needs and rapid mold opening.
Q4: Can I get the sample?
Yes, we can provide stock samples for free, but a little sample charge for custom design, new customers are expected to pay for the delivery cost, the sample charge will be deducted from the payment for formal order.
Q5: How long is the sample lead time?
For existing product, it takes 1-2 days; If you want your design, it may take 3-5 days depends on your design.
